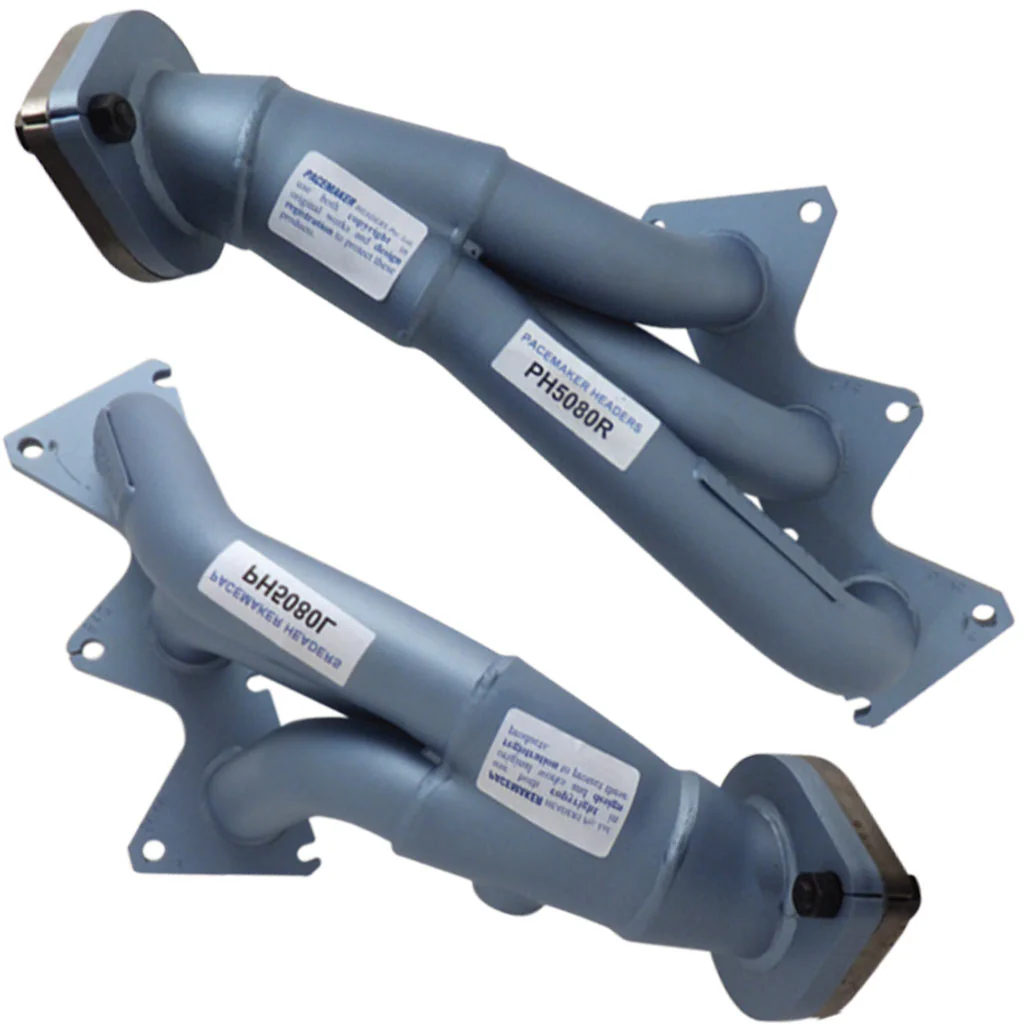

PACEMAKER Extractors Suit Commodore VE To 2012 Alloytec V6 Sohc 180Kw Dohc 210Kw

Genuine PACEMAKER Header To Suit Commodore VE UP To 2012 Only Alloytec V6 Single OHC 180KW Dual OHC 210KW Manual & Automatic Tuned Design

*Note - Fabrication is required* These Headers do not bolt to a factory flange position. The original engine pipe needs to be cut in front of the cat. A extra flange is supplied to be welded to the original exhaust after the cut is made. This creates a flange point for the headers to bolt to.

Power Steering Yes
Air Cond. Yes
Oxy. Sen. Yes
E.G.R. NA
Y Branch NA
Gasket Phfg 5069
Prim. Pipe 1 5/8" 41 MM
Sec. Pipe
Outlet (Flanged) 2 1/4" 57 MM
Approximate Fitting Time 2 1/2 Hrs

Please Note

Will Not Fit 3.0L S.I.D.I. (Due To 1 Piece Head Manifold Combination)
These Headers Fit UP To The Cats In Original Factory Position
Not Suitable For 3.0 Litre Or 3.6 Litre After 2012
Pex5080 X 2 Wiring Extensions Required For S.I.D.I. 3.6 Litre After 2009-2012

Part Number PH5080
